You Are Here : Home> Products >Air Filter >Plate Frame Filter > Primary-efficiency panel filter

Air Filter

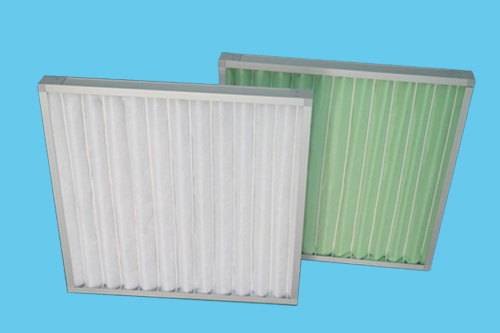

Primary-efficiency panel filter

Primary-efficiency panel filter

Suitable as prefilter used to protect highperformance filters, and clean room ventilation system filters.

E-mail: info@dkingfilter.com

Tel: +86-373-3361119

Description

Trapping 4060% of >5um particles.

Using special lowresistance and highthrough nonwoven fabrics as the filter material, with a high dust containing capacity.

Frame can be made of cardboard ,galvanized steel sheet, stainless steel sheet, aluminum alloy or plastic.

Application

Suitable as prefilter used to protect highperformance filters, and clean room ventilation system filters.

Specification

Model	Dimensions	Rated Air Flow(m3/h)		Initial Pressure Drop (Pa)		Media Area (m2)	Pitch(mm)
Model	WHD(mm)	Standard	High Capacity	Standard	High Capacity	Media Area (m2)	Pitch(mm)
DKP12241	29059523	600	1200	20	63	0.40	19
DKP20141	49334123	550	1100			0.39
DKP20151	49336623	625	1250			0.43
DKP20161	49339123	650	1300			0.45
DKP20201	49349323	800	1600			0.56
DKP20241	49359523	950	1900			0.65
DKP24241	59559523	1200	2400			0.83
DKP25141	62034123	700	1400			0.48
DKP25161	62039123	800	1600			0.57
DKP25201	62049323	1000	2000			0.71
DKP14202	34149346	850	1700	20	70	0.77	20
DKP20122	49329046	700	1400			0.70
DKP20162	49339146	900	1800			0.94
DKP20182	49344246	1050	2100			1.01
DKP20202	49349346	1200	2400			1.12
DKP24122	59529046	850	1700			0.79
DKP24182	59544246	1300	2600			1.24
DKP24202	59549346	1400	2800			1.36
DKP24242	59559546	1700	3400			1.64
DKP25162	62039146	1200	2400			1.18
DKP25182	62044246	1350	2700			1.27
DKP25202	62049346	1500	3000			1.42
DKP20164	49349396	950	1900	18	68	1.45	28
DKP20204	49349396	1200	2400			1.73
DKP24124	59529096	850	1700			1.28
DKP24184	59544296	1300	2600			1.91
DKP24204	59549396	1700	2800			2.09
DKP24244	59559596	1700	3400			2.55
DKP25164	62039196	1200	2400			1.82
DKP25204	62049396	1500	3000			2.18
DKP25294	62072196	2150	4300			3.27
