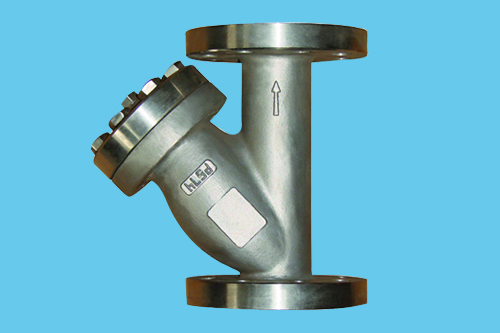

D.king stainless steel or carbon steel pipeline Y Strainer

D.king stainless steel or carbon steel pipeline Y Strainer

Y strainer is mainly use to remove a small amount of liquid solid particles small equipment to protect compressors, pumps, instrumentation.


TAG:  Y-Strainer
E-mail: info@dkingfilter.com
Tel: +86-373-3361119
Chat Now
Inquiry
  • Features
  • Technical Data
  • Applications

INTRODUCTION

Y strainer is mainly use to remove a small amount of liquid solid particles small equipment to protect compressors, pumps, instrumentation, and other normal operation, when fluid enters a certain size mesh filter barrel, its impurities are blocked, and clean the filtrate from the filter outlet when you need cleaning, simply remove the removable filter bucket out, you can reload after treatment, so maintenance is extremely convenient.
It has been widely used in petroleum, chemical, pharmaceutical, food, environmental protection and other industries.
If it is installed in series in other parts of the pump inlet or pipeline systems, it can either extend the life of pumps and other equipment, but also to ensure the safety of the entire system.

FEATURE

Y type filter is a indispensable filter device of transmission medium pipe system , It is usually installed in the valve, pressure relief valve , water valve or other device inlet , used to remove impurities in the medium to protect the valves and equipment normal use .

The material of Y type filter is carbon steel , stainless steel , copper . The connection type is thread and flange . You can choose the suitable filter according to your requirements .

TECHNICAL PARAMETERS

1. Housing material : carbon steel , stainless steel

2. Nominal diameter : DN25DN400 mm

3. Filter screen material : stainless steel

4. Sealing material : NBR , pllytef (according to working medium )

5. Working temperature : no more than 90 centigrade

6. Connection type : flange

7. Normal pressure : 1.6MPa

8. Micron rating : 10480 mesh (water 1830 mesh , gas 40100 mesh , oil 100480 mesh)

WORKING MEDIUM

①Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon .
②Chemical production of corrosive materials .eg: caustic soda , soda ash , dense and dilute sulphuric acid , carbonic acid , acetic acid , ester acid .
③Low temperature materials in the refrigeration . eg: liquid methane, liquid ammonia , liquid oxygen and all kinds of refrigerating fluid .
④Light food , pharmaceutical production , health requirements of the material . eg: beer , drink , dairy products , medicine appliance

DRAWING

Y Type Strainer

Y Type Strainer

Y Type Strainer


TAG:  Y-Strainer
Specification

OVERALL SIZE

Model

Size (mm)

Valid filter area m2

DN

In

L

H

H1

FIR15×*

15

1/2

125

70

150

0.00185

FIR20×*

20

3/4

145

70

150

0.00281

FIR25×*

25

1

160

80

160

0.00343

FIR32×*

32

1 1/4

180

90

180

0.00486

FIR40×*

40

1 1/2

200

100

240

0.00767

FIR50×*

50

2

220

130

250

0.01161

FIR65×*

65

2 1/2

260

165

350

0.02111

FIR80×*

80

3

280

195

390

0.03029

FIR100×*

100

4

320

230

450

0.04063

FIR125×*

125

5

320

230

490

0.05523

FIR150×*

150

6

380

335

580

0.07709

FIR200×*

200

8

495

420

690

0.11967

FIR250×*

250

10

595

500

800

0.19155

FIR300×*

300

12

640

580

950

0.26738

FIR350×*

350

14

750

650

1100

0.30926

FIR400×*

400

16

800

700

1360

0.40946

FIR450×*

450

18

850

800

1500

0.55638

FIR500×*

500

20

900

875

1650

0.65385

FIR550×*

550

22

1000

940

1780

0.76956

FIR600×*

600

24

1250

1050

1900

0.87528






TAG:  Y-Strainer
Applications
  • Special Type Vehicle & Ship

    These can be used on SPECIAL T...

    + Details

  • Chemical Industry

    In the CHEMICAL INDUSTARY, The...

    + Details

Related Products
  •
    D.king stainless steel or carbon steel primary pipeline T type Filter

    D.king stainless steel or carbon steel primary pipeline T type Filter

  •
    China factory supply primary filter Y-Strainer filter

    China factory supply primary filter Y-Strainer filter

  •

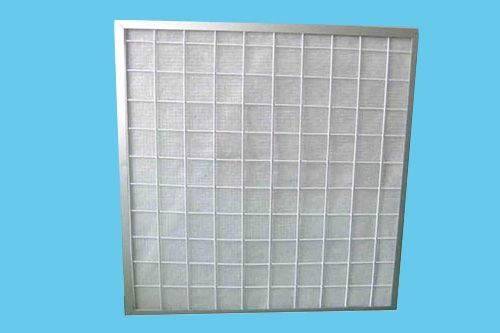

    China high efficiency plate frame air Filter
