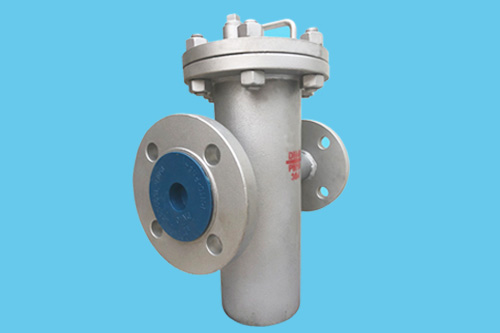

D.king stainless steel or carbon steel primary pipeline T type Filter

D.king stainless steel or carbon steel primary pipeline T type Filter

Application Weak corrosive materials in the chemical, petrochemical production,eg: water, ammonia, oil, hydrocarbon. Chemical production of corrosive materials. eg: caustic soda, soda ash, dense


TAG:  T Filter wholesale
E-mail: info@dkingfilter.com
Tel: +86-373-3361119
Chat Now
Inquiry
  • Features
  • Technical Data
  • Applications

Material: carbon steel, stainless steel
T filter is a kind of indispensable filtering device which is transport medium pipeline system
T filter is belong to pipeline coarse filter series

Installation location: Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end
Effect: Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use

Technical
1.  Housing material: carbon steel , stainless steel
2.  Nominal diameter: DN25DN400 mm
3.  Filter screen material: stainless steel
4.  Sealing material: NBR, pllytef (according to working medium )
5.  Working temperature: no more than 90 centigrade
6.  Connection type: flange
7.  Normal pressure: 1. 6MPa
8.  Micron rating: 10480 mesh (water 1830 mesh, gas 40100 mesh, oil 100480 mesh)


TAG:  T Filter wholesale
Specification

Model

Size(mm)

Valid filter area m2

DN

In

L

H

H1

FTT40×*

40

1 1/2

256

149

306

0.0029

FTT50×*

50

2

256

149

306

0.0039

FTT65×*

65

2 1/2

292

170

348

0.0053

FTT80×*

80

3

312

182

384

0.0079

FTT100×*

100

4

362

210

473

0.0133

FTT125×*

125

5

420

235

529

0.0204

FTT150×*

150

6

460

260

581

0.0273

FTT200×*

200

8

560

320

694

0.0462

FTT250×*

250

10

670

380

821

0.0699

FTT300×*

300

12

780

430

949

0.1001

FTT350×*

350

16

830

450

1023

0.1205

FTT400×*

400

20

910

530

1166

0.1585






TAG:  T Filter wholesale
Applications
  • Oil & Gas Industry

    In the PETROCHEMICAL INDUSTRY,...

    + Details

  • Iron & Steel And Metallurgyind...

    In the IRON STEEL INDUSTRY, Th...

    + Details

Related Products
  •

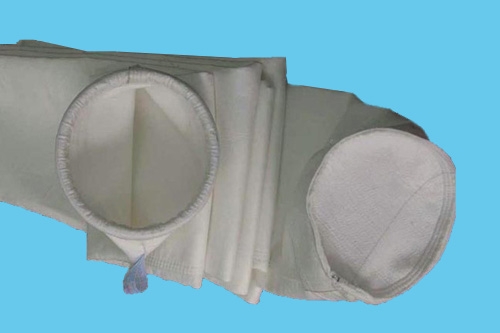

    China good quality PTFE Liquid Filter Bag
