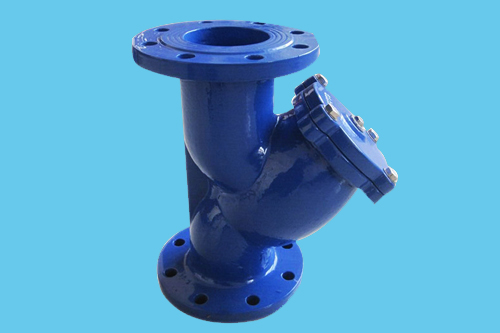

Primary filter pipe liquid Y Filter

Primary filter pipe liquid Y Filter

Application: Weak corrosive materials in the chemical, petrochemical production ,eg: water , ammonia , oil , hydrocarbon . Chemical production of corrosive materials .eg: caustic soda , soda ash , dense

E-mail: info@dkingfilter.com
Tel: +86-373-3361119
Chat Now
Inquiry
  • Features
  • Technical Data
  • Applications

Material: carbon steel , stainless steel
Basket filter is a kind of indispensable filtering device which is transport medium pipeline system
Basket filter is belong to pipeline coarse filter series
easy install and washing
big accept dirt
Installation location: Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end
Effect: Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use
Technical parameters
Housing material: carbon steel , stainless steel
Nominal diameter: DN15DN600 mm
Filter screen material: stainless steel
Sealing material: NBR , pllytef (according to working medium )
Working temperature: no more than 90 centigrade
Connection type: flange
Normal pressure: 1.610MPa
Micron rating: 10480 mesh (water 1830 mesh , gas 40100 mesh , oil 100480 mesh)

Specification

Model

Size (mm)

Valid filter area m2

DN

In

L

H

H1

FTR15×*

15

1/2

125

70

150

0.00185

FTR20×*

20

3/4

145

70

150

0.00281

FTR25×*

25

1

160

80

160

0.00343

FTR32×*

32

1 1/4

180

90

180

0.00486

FTR40×*

40

1 1/2

200

100

240

0.00767

FTR50×*

50

2

220

130

250

0.01161

FTR65×*

65

2 1/2

260

165

350

0.02111

FTR80×*

80

3

280

195

390

0.03029

FTR100×*

100

4

320

230

450

0.04063

FTR125×*

125

5

320

230

490

0.05523

FTR150×*

150

6

380

335

580

0.07709

FTR200×*

200

8

495

420

690

0.11967

FTR250×*

250

10

595

500

800

0.19155

FTR300×*

300

12

640

580

950

0.26738

FTR350×*

350

14

750

650

1100

0.30926

FTR400×*

400

16

800

700

1360

0.40946

FTR450×*

450

18

850

800

1500

0.55638

FTR500×*

500

20

900

875

1650

0.65385

FTR550×*

550

22

1000

940

1780

0.76956

FTR600×*

600

24

1250

1050

1900

0.87528
