You Are Here : Home> Products >Air Filter >Filter Pocket > D.king Synthetic fiberglass Pocket Air Filter

Air Filter

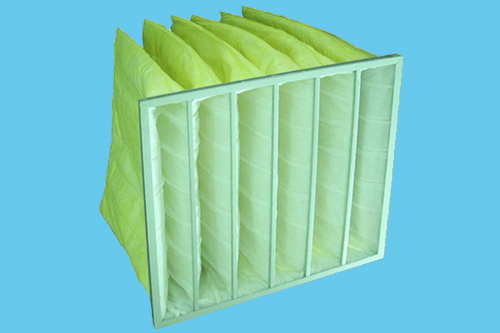

D.king Synthetic fiberglass Pocket Air Filter

Suitable for the electronic, biopharmaceutical, machinery, instrument petrochemical and light industry as general air purification systems

TAG: F8 Synthetic Pocket Filter-Xinxiang D.King Industry Co., Ltd

E-mail: info@dkingfilter.com

Tel: +86-373-3361119

Chat Now

Inquiry

Filteration efficiency G4F8 is available for selection

Using special lowresistance and highthroughput composite fabric of synthetic fiber as the filter material, with a high dust containing containing capacity

The filter can be with the frame made up of aluminum alloy, galvanized steel, stainless steel or plastic

Application

Suitable for the electronic, biopharmaceutical, machinery, instrument petrochemical and light industry as general air purification systems

TAG: F8 Synthetic Pocket Filter-Xinxiang D.King Industry Co., Ltd

Specification

Model	Dimensions	No.of Pockets	Media Area (m2)	initial Presure Drop(Pa)Reted Air Flow(m3/h)
Model	WHD(mm)	No.of Pockets	Media Area (m2)	G4(4045%)	F5(6065%)	F6(6065%)	F7(8085%)	F8(9095%)
DKS2424248p	592592600	8	6.5	27 \| 3400	38\|3400	58\|3400	68\|3400	98\|3400
DKS2424228p	592592558		6.1	29\| 3400	41\|3400	62\|3400	73\|3400	104\|3400
DKS2424188p	592592450		4.9	36\| 3400	51\|3400	77\|3400	91\|3400	98\|2550
DKS2424158p	592592381		4.2	42\| 3400	59\|3400	90\|3400	106\|3400	114\|2550
DKS2424128p	592592300		3.4	52\| 3400	73\|3400	111\|3400	98\|2550	141\|2550
DKS2424246p	592592600	6	5	35\| 3400	50\|3400	76\|3400	89\|3400	96\|2550
DKS2424226p	592592558		4.7	38\| 3400	53\|3400	81\|3400	94\|3400	102\|2550
DKS2424186p	592592450		3.8	47\| 3400	65\|3400	100\|3400	88\|2550	126\|2550
DKS2424156p	592592381		3.3	54\| 3400	75\|3400	86\|2550	101\|2550	145\|2550
DKS2424126p	592592300		2.6	68\| 3400	95\|3400	109\|2550	85\|1700	123\|1700
DKS2024246p	490592600	6	4.9	36\| 3400	51\|3400	77\|3400	90\|3400	98\|2550
DKS2024226p	490592558		4.6	38\| 3400	54\|3400	82\|3400	96\|3400	104\|2550
DKS2024186p	490592450		3.7	48\| 3400	67\|3400	102\|3400	90\|2550	130\|2550
DKS2024156p	490592381		3.2	55\| 3400	78\|3400	89\|2550	104\|2550	150\|2550
DKS2024126p	490592300		2.6	68\|3400	95\|3400	109\|2550	85\|1700	123\|1700
DKS2020245p	490490600	5	3.5	38\|2550	53\|2550	81\|2550	95\|2550	137\|2550
DKS2020225p	490490558		3.3	40\|2550	57\|2550	86\|2550	101\|2550	148\|2550
DKS2020185p	490490450		2.7	49\|2550	67\|2550	105\|2550	82\|1700	118\|1700
DKS2020155p	490490381		2.3	58\|2550	81\|2550	82\|1700	96\|1700	139\|1700
DKS2020125p	490490300		1.8	74\|2500	67\|1700	105\|1700	123\|1700	89\|850
DKS1224244p	287592600	4	3.2	27\|1700	38\|1700	58\|1700	68\|1700	98\|1700
DKS1224224p	287592558		3	29\|1700	41\|1700	62\|1700	73\|1700	104\|1700
DKS1224184p	287592450		2.4	36\|1700	51\|1700	77\|1700	91\|1700	98\|1275
DKS1224154p	287592381		2.1	42\|1700	59\|1700	90\|1700	106\|1700	114\|1275
DKS1224124p	287592300		1.7	52\|1700	73\|1700	111\|1700	98\|1275	141\|1275
DKS1224243p	287592600	3	2.5	35\|1700	50\|1700	76\|1700	89\|1700	96\|1275
DKS1224223p	287592558		2.3	38\|1700	53\|1700	81\|1700	94\|1700	102\|1275
DKS1224183p	287592450		1.9	47\|1700	65\|1700	100\|1700	88\|1275	126\|1275
DKS1224153p	287592381		1.6	54\|1700	75\|1700	86\|1700	91\|1275	145\|1275
DKS1224123p	287592300		1.3	68\|1700	95\|1700	109\|1700	91\|1275	123\|850

TAG: F8 Synthetic Pocket Filter-Xinxiang D.King Industry Co., Ltd

Model	Dimensions	No.of Pockets	Media Area (m2)	initial Presure Drop(Pa)Reted Air Flow(m3/h)
Model	WHD(mm)	No.of Pockets	Media Area (m2)	G4(4045%)	F5(6065%)	F6(6065%)	F7(8085%)	F8(9095%)
DKS2424248p	592592600	8	6.5	27 \| 3400	38\|3400	58\|3400	68\|3400	98\|3400
DKS2424228p	592592558		6.1	29\| 3400	41\|3400	62\|3400	73\|3400	104\|3400
DKS2424188p	592592450		4.9	36\| 3400	51\|3400	77\|3400	91\|3400	98\|2550
DKS2424158p	592592381		4.2	42\| 3400	59\|3400	90\|3400	106\|3400	114\|2550
DKS2424128p	592592300		3.4	52\| 3400	73\|3400	111\|3400	98\|2550	141\|2550
DKS2424246p	592592600	6	5	35\| 3400	50\|3400	76\|3400	89\|3400	96\|2550
DKS2424226p	592592558		4.7	38\| 3400	53\|3400	81\|3400	94\|3400	102\|2550
DKS2424186p	592592450		3.8	47\| 3400	65\|3400	100\|3400	88\|2550	126\|2550
DKS2424156p	592592381		3.3	54\| 3400	75\|3400	86\|2550	101\|2550	145\|2550
DKS2424126p	592592300		2.6	68\| 3400	95\|3400	109\|2550	85\|1700	123\|1700
DKS2024246p	490592600	6	4.9	36\| 3400	51\|3400	77\|3400	90\|3400	98\|2550
DKS2024226p	490592558		4.6	38\| 3400	54\|3400	82\|3400	96\|3400	104\|2550
DKS2024186p	490592450		3.7	48\| 3400	67\|3400	102\|3400	90\|2550	130\|2550
DKS2024156p	490592381		3.2	55\| 3400	78\|3400	89\|2550	104\|2550	150\|2550
DKS2024126p	490592300		2.6	68\|3400	95\|3400	109\|2550	85\|1700	123\|1700
DKS2020245p	490490600	5	3.5	38\|2550	53\|2550	81\|2550	95\|2550	137\|2550
DKS2020225p	490490558		3.3	40\|2550	57\|2550	86\|2550	101\|2550	148\|2550
DKS2020185p	490490450		2.7	49\|2550	67\|2550	105\|2550	82\|1700	118\|1700
DKS2020155p	490490381		2.3	58\|2550	81\|2550	82\|1700	96\|1700	139\|1700
DKS2020125p	490490300		1.8	74\|2500	67\|1700	105\|1700	123\|1700	89\|850
DKS1224244p	287592600	4	3.2	27\|1700	38\|1700	58\|1700	68\|1700	98\|1700
DKS1224224p	287592558		3	29\|1700	41\|1700	62\|1700	73\|1700	104\|1700
DKS1224184p	287592450		2.4	36\|1700	51\|1700	77\|1700	91\|1700	98\|1275
DKS1224154p	287592381		2.1	42\|1700	59\|1700	90\|1700	106\|1700	114\|1275
DKS1224124p	287592300		1.7	52\|1700	73\|1700	111\|1700	98\|1275	141\|1275
DKS1224243p	287592600	3	2.5	35\|1700	50\|1700	76\|1700	89\|1700	96\|1275
DKS1224223p	287592558		2.3	38\|1700	53\|1700	81\|1700	94\|1700	102\|1275
DKS1224183p	287592450		1.9	47\|1700	65\|1700	100\|1700	88\|1275	126\|1275
DKS1224153p	287592381		1.6	54\|1700	75\|1700	86\|1700	91\|1275	145\|1275
DKS1224123p	287592300		1.3	68\|1700	95\|1700	109\|1700	91\|1275	123\|850
