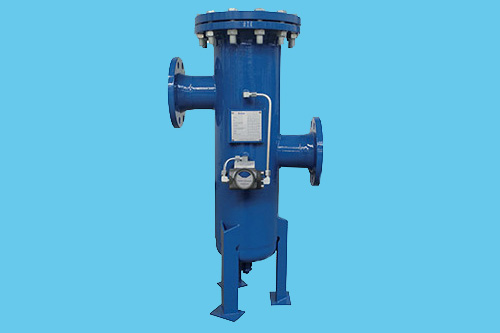

Single filter is made up of housing, element and other parts. it mainly used to filtration oil, water and other liquid.
Single filter is made up of housing, element and other parts. it mainly used to filtration oil, water and other liquid. The single filter is flange type, connect with pipeline in working system. The working pressure is 1.6MPa. big flow capacity can suit for every working system.
hydraulic oil: fiberglass filter cartridge , candle filter , multilevel filter
lubrication oil: candle filter , multilevel filter
heavy oil: basket filter element
light oil: fiberglass filter cartridge , candle filter , multilevel filter
fuel oil: basket filter element
water: basket filter element
1.The single filter is install in the pipeline of hydraulic system .
2.This type single filter housing do not allows continuous operation even if the clogged element need replacing for a clean one , so if you want to change element , you must stop the working system.
3.The alarm switch point setting of duplex strainer is 0.35MPa , it can be changed according to customers requirement.
4.This single oil filter is easy operate.
1.This single filter is widely used in metallurgical machinery , mining machinery , heavyduty machinery etc lubricating system.
2.Applicable industries: Fine chemicals, water treatment systems, plup and paper, automobile manufacturing, petrochemical, machining, coatings, electronics etc.
3.Applicable liquids: Wide applicability, all liquids contained microimpurities .
4.Filtration function: Remove all sizes of particles, purify liquids, protection of critical equipment.
Item |
Name |
Material |
Quantity |
1 |
Housing |
C.S / S.S |
1 set |
2 |
Element |
S.S/ glassfiber |
1 piece |
3 |
Cover |
C.S / S.S |
1 piece |
4 |
Flange |
C.S / S.S |
2 sets |
5 |
Pressure plate |
C.S / S.S |
1 piece |
6 |
Oring |
Fluoro rubber |
2 piece |
7 |
Nut |
C.S / S.S |
1 set |
8 |
Screw |
C.S / S.S |
1 piece |
Model |
DN(mm) |
Flow(L/min) |
Micron rating(um) |
Pressure(MPa) |
Pressure loss(MPa) |
Model Element |
|
Initial |
Max |
||||||
YLQR100×* |
100 |
1300 |
1 |
1.6 |
≤0.2 |
0.35 |
According to the working medium |
YLQR125×* |
125 |
2600 |
|||||
YLQR150×* |
150 |
2600 |
|||||
YLQR200×* |
200 |
3900 |
|||||
YLQR250×* |
250 |
6500 |
|||||
YLQR250×* |
250 |
7800 |
|||||
YLQR250×* |
250 |
9100 |
Model |
Size (mm) |
|||||||||
DN |
D2 |
D3 |
D6 |
H1 |
H2 |
H3 |
H4 |
H5 |
B1 |
|
YLQR100×* |
100 |
325 |
245 |
G1 |
1200 |
250 |
230 |
365 |
230 |
500 |
YLQR125×* |
125 |
500 |
416 |
G1 |
1280 |
250 |
275 |
365 |
230 |
600 |
YLQR150×* |
150 |
500 |
416 |
G1 |
1280 |
250 |
275 |
365 |
230 |
600 |
YLQR200×* |
200 |
500 |
416 |
G1 |
1280 |
250 |
275 |
365 |
230 |
600 |
YLQR250×* |
250 |
610 |
508 |
G1 |
1500 |
250 |
350 |
450 |
250 |
750 |
