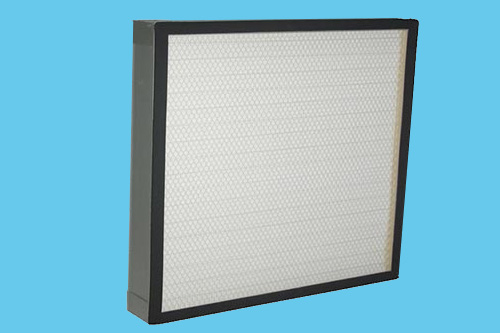

D.king Mini-Pleat HEPA Panel Air Filter

Suitable for electronics, pharmaceutical industry, hospital, and the occasions required the high cleanliness terminal filtration.

E-mail: info@dkingfilter.com

Tel: +86-373-3361119

Chat Now

Inquiry

Trapping 99.97% or higher of 0.3μm particles

Adopt computercontrolled automatic production line for manufacturing, the crest height of folding filter material can be regulated setplessly between 22~96mm

Using special glass fiber filter paper as the filter material

Each filter is through rigorous testing

Adopt international standards sizes

Application

Suitable for electronics, pharmaceutical industry, hospital, and the occasions required the high cleanliness terminal filtration.

Specification

Model	Dimensions	Media Area (m2)	Rated Air Flow (m3/h)	Face Velocity (m/s)	Initial Pressure Drop (Pa)
Model	W×H×D (mm)	Media Area (m2)	Rated Air Flow (m3/h)	Face Velocity (m/s)	Initial Pressure Drop (Pa)
DKH610/0350	305×305×50	1.6	150	0.5	≤190
DKH610/0550	305×610×50	3.3	300
DKH610/1050	610×610×50	6.7	600
DKH610/1550	915×610×50	10.1	900
DKH610/2050	1220×610×50	13.5	1200
DKH610/0370	305×305×70	2.7	250	0.75
DKH610/0570	305×610×70	5.5	500
DKH610/1070	610×610×70	11.3	1000
DKH610/1570	915×610×70	17.0	1500
DKH610/2070	1220×610×70	22.7	2000
DKH610/0390	305×305×90	3.7	320	1.0
DKH610/0590	305×610×90	7.5	650
DKH610/1090	610×610×90	15.4	1300
DKH610/1590	915×610×90	23.2	2000
