PP melt blown filter element uses polypropylene (PP) thermal...
Prefiltration of R.O. system, Desalination Solvents filtration in biopharmaceutical factory. Bottle water. makeup water .rinsing water. Paints and coating, petrochemical Electronics, film, fiber and resin

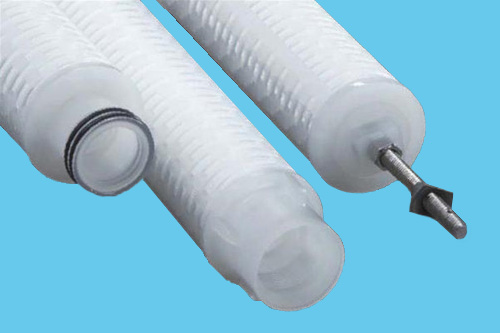

ZF70 high flow cartridge is designed for plant condensed water 70’’ high flow depth construction. This type could be back washed.
Features:
Absolute –rated micron; Up to 70’’ high flow design, Inside threaded connector; Less time to changeout; Back wash design & long service life, High filtration area with depth pleated design; All PP construction.
Applicarion:
Prefiltration of R.O. system, Desalination
Solvents filtration in biopharmaceutical factory.
Bottle water. makeup water .rinsing water.
Paints and coating, petrochemical
Electronics, film, fiber and resin
Filter Media |
Polypropylene |
Support/Drainage |
Polypropylene |
Connector |
Thread |
Positioner |
Screw(SUS304) |
Suggested Flow |
5.6m3/h /cartridge |
Size |
OD 25’’*70’’ |
Micron |
1um,2um,5um,10um |
Filter Area |
6.5m2 |
Max. Working Temperature |
6080 Degree |
Max. Pressure Drop |
2.8bar,65 Degree |
