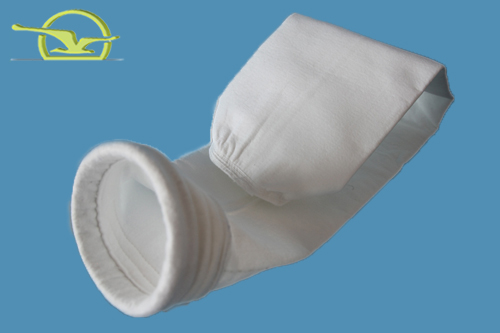

FMS HighTemperature air Filter Bag

FMS Filter Bag is a composite filter media with the performances of high temperature resistant, chemical stability, high intensity and excellent property of dust collection capability.

Specification of FMS High Temperature Air Filter Bag:
Material: Fiberglass compound staple fiber, P84 fibre, Nomex fiber
Scrim: with fiberglass staple yarn
Width:≤2.2m
Thickness:2.32.7mm
Weight:800900g/m2 ±10%
Temperature ( Degree): Continue: 240, Instant: 280

Features of FMS High Temperature Air Filter Bag:
High Temperature Resistance:240280
High Filtration Efficiency: reach to 99.6%
Excellent AntiAcid And AntiAlkali
Abrasion resistance
Long Service Life: >4500 hours
Filtration Velocity up to 1.0 m/min
First choice in Iron & steel, smelting blast furnace gas purification and other industries
Stable working time: up to more than 4500 hours. Could be used cyclically.
Can be used in a variety of complex situation and harsh environmental conditions
Can be customized.

Polypropylene Filter Bag-PP,Dust Filter,Filter Bags

Application

Ironworks air filtering
Power plant dust removal
Cement plant dust filtration
Chemical industry air filtration
Waste incineration gas treatment
Carbon black industry gas cleaning
Calcium carbide industry gas filtration
Metal production and smelting plant dust collection

TAG: filter bag

Specification

Weight(gsm)		850
Thickness(mm)		2.5
Width(mm)		≤2.2m
Finish treatment		Singeing, Calendering, Heat setting
Air permeability(L/m2.s)		200350
Tensile strength(N/5cm)	warp	≥800
	weft	≥1000
Tensile elongation(%)	warp	≤35
	weft	≤60
Heat shrinkage(%)	warp	≤1.5
	weft	≤1.0
Temperature( Degree)	Continue	240
	Instant	280
