PP melt blown filter element uses polypropylene (PP) thermal...
We are the professional manufacturer of filter in xinxiang China . We produce the top products with the first-rate equipment and technology. And we enjoy good reputation in home and broad. We’d like to establish long term business relations with customers over the world.
Introductions

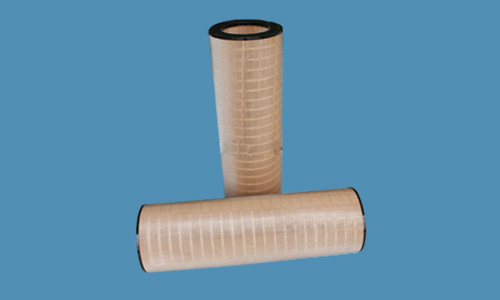

KLX series air filter applicable to air separation, purification of dust, In order to ensure cleanliness requirements system, extending use life.
This filter to kapok fiber or polyester fiber filter material, to fold into corrugated shape, and within the time frame.
Characteristics
With high efficiency, low resistance, good permeability. High reliability, long life and other characteristics, polyester fiber materials have more resistance, corrosion resistance, water, not easy clean, can use repeatedly pulse.
Use cope
It is widely used in blast furnace, thus standing raw blower air machine, various raw materials of gas turbine, takes a long time to run the diesel engine, air dust-contained two higher requirements of central air conditioning system, central control and other large unit inlet filtration powder coating system powder recovery system.
Structure:
end and bottom caps,material is aluminum , iron, rubber
inner and outer tube, material is galvanized sheet
filter medium ,material is glassfibre , PP non-woven , filter paper
Name |
Model |
Capacity(m3/h) |
Pressure (Pa) |
Working temperature(°C) |
Filtration efficiency(%) |
Size (mm) |
||
D |
D1 |
L |
||||||
air filter element |
KLX-850 |
850 |
120-175 |
Bombax cotton 105 Polyester fiber 135 |
Bombax cotton 99 Polyester fiber 99.99(more than 2um) |
320 |
212 |
560 |
KLX-900 |
900 |
320 |
212 |
610 |
||||
KLX-1000 |
1000 |
320 |
212 |
660 |
||||
KLX-1050 |
1050 |
320 |
212 |
700 |
||||
KLX-1100 |
1100 |
350 |
240 |
600 |
||||
KLX-1150 |
1150 |
350 |
240 |
650 |
||||
KLX-1200 |
1200 |
350 |
240 |
710 |
||||
KLX-1800 |
1800 |
400 |
291 |
315 |
