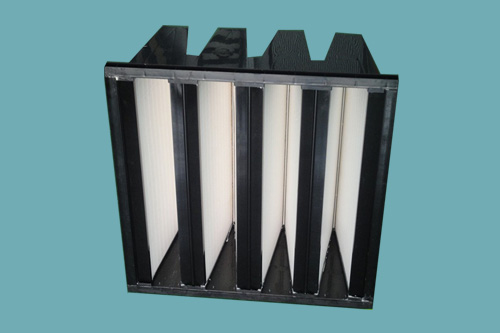

Glass fiber material H13 V-bank Air Filter Air Purifier Hepa Filter for clean room
Applications
Advanced filtration of air conditioning and ventilation system in the central air conditioning and ventilation system. Such as microelectronics semiconductor , pharmaceutical ,chemical food , and other clean areas of ventilation system end.
Specifications
Frame :Extruded anodized Aluminium profile / Galvanised sheet metal
Media :Glass fiber paper
Separators :Hot melt glue
Sealant/Gasket :Polyurethane
Faceguard: Expanded sheet metal ,white
Temperature:≤70℃
Humidity: ≤95%
Recommended final pressure drop: ≤500Pa
Filter Efficiency:≥99.95% at MPPS @0.45m/s
Efficiency: ≥99.99% at 0.3um @0.45m/s
