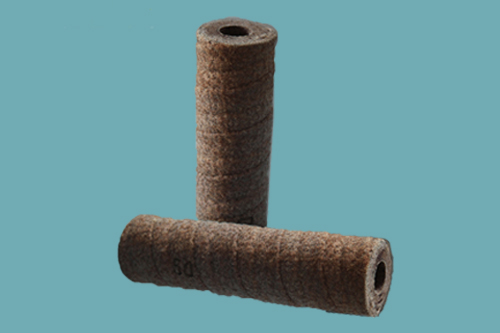

D.King Resin Bonded Cartridges have a unique two stage filtration design to maximize particle removal and prolong service life in viscous fluid filtration applications. An outer pre-filter wrap increases cartridge strength and eliminates residual debris associated with conventional, machined, resin bonded cartridges. D.King Resin Bonded filters are available in eight nominal removal ratings of 2μm, 5μm, 10μm, 25μm, 50μm, 75μm, 125μm and 150μm to meet a wide range of application requirements. Resin bonded cartridges maximize particle removal in: paints, printing inks, adhesives, resins, emulsions, chemical coatings, organic solvents, petroleum products, process water, oil field fluids, animal oils, waxes and plasticizers.They are constructed of acrylic, long staple fibers with a phenolic bonding resin; coreless, one- piece, rigid resin bonded fibrous matrix.
Features
1. Outer, spiral wrap collects large particles and agglomerates, while inner layers control particleremoval at the rated size;
2. Outer wrap increases surface area and eliminates loose debris and contamination caused bymachined Products;
3. Available with optimal single-open- end seals (222 o-ring with flat cap) in ABS or nylon;
4. Withstands pressure surges up to 150 psid across cartridge (depending on fluid temperature);
5. One-piece construction eliminates bypass concerns with multi-length cartridges and eases change out;
6. Silicone-free construction ensures no contamination to adversely affect adhesion properties of coatings.
Specifications
Materials of Construction:
1st stage Pre-filter wrap: Polyester/Acrylic long staple fiber blend;
2nd stage Final Filter wrap: Acrylic long staple fiber; Fibers impregnated with Phenolic Resin;
Types of Construction: Coreless, one-piece, rigid resin bonded fibrous matrix;
Nominal Removal Ratings: 90% removal efficiency at 2μm, 5μm, 10μm, 25μm, 50μm, 75μm, 125μm and 150μm;
Cartridge Dimensions:
Outside diameter: 2 5/8 in. (65 mm.)
Inside diameter: 1 1/8 in. (28.6 mm.)
10, 20, 30 and 40 in. continuous nominal lengths.
Recommended Operating Conditions:
Maximum flow rate: 5 gpm per 10 in. length (18.9 lpm per 254 mm. length)
Maximum temperature: 250ºF (121ºC)
Change out DP: 50 psid (3.5 bar)
Cartridge pressure resistance:
150 psid (10 bar) @ 70ºF (21ºC),
125 psid (8.6 bar) @ 100ºF (38ºC),
90 psid (6.2 bar) @ 150ºF (65ºC),
65 psid (4.5 bar) @ 180ºF (82ºC),
25 psid (1.7 bar) @ 250ºF (121ºC).
End Adapters:
1.None on double open end style;
2.ABS (Acrylonitrile Butadiene Styrene) for most applications;
3.Nylon (NTC) for aromatic solvents.
