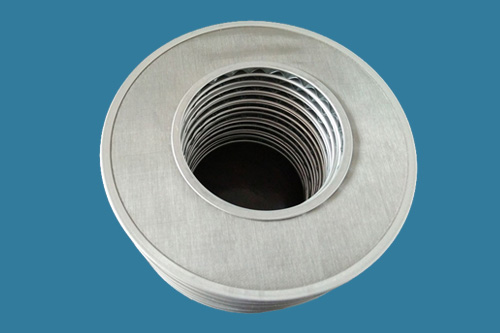

filter disc for oil lubrication filter

Lubrication filter is mainly used to metallurgy , chemical industry , machinofacture , papermaking , spinning , food medicine , livelihood , environmental protection etc. which involved oil , water filter industry :

Raw oil , fuel oil , diesel oil , kerosene , gasoline ,etc . filtering

Lubricating oil , hydraulic oil ,machine oil , gear oil etc. filtering

Raw water , sewage , plain water , reclaimed etc. clear filtering.

Main characteristic:

high strength , long use life , strong resistance to corrosion , big use temperature range , no material break away off
big filter area , big flow , high porosity , fine permeability , strong ability of accept dirt , can clean and back wash
easy install , dismantle , clean , use economy

oil filter disc wholesale

TAG: filter disc for oil lubrication filter

Specification

Model	Latus rectum(mm)	Filter precision(um)	Nominal pressure(MPa)	Filter disc size(mm)		Filter disc number
Model	Latus rectum(mm)	Filter precision(um)	Nominal pressure(MPa)	Inner	Outer	Filter disc number
SPL-15	15	80 100 180	0.8	20	40	2-30
SPL-25	25			30	65	2-20
SPL-32	32			30	65	2-30
SPL-40	40			40	95	2-34
SPL-50	50			60	125	2-22
SPL-65	65			60	125	2-34
SPL-80	80			70	155	2-40
SPL-100	100			70	155	4-40
SPL-125	125			90	175	4-40
SPL-150	150			90	175	6-40
SPL-200	200			90	175	8-40
