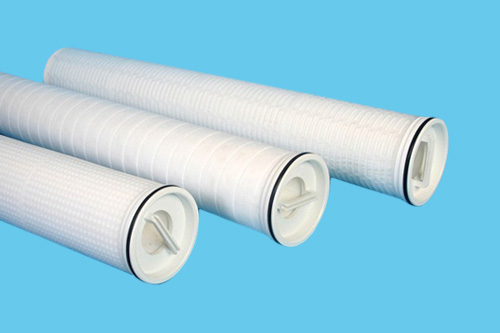

PF Pleat Water Filter

PF high flow filter cartridge is made by diameter 6’’ and pleated design with high flow area and contamination removal capacity. This is design helps end user to reduce capital investment, save plant space, easy to change –out and ect, Pullner PF product has various applications on water treatment system.

Features:
Fewer cartridge and less time to assemble.
Commonuse size:20'',40''60''length cartridge.
Filtration systems are 50% smaller than typical sixe system.
In to out flow direction keeps all of the contamination catched.
Handle design makes change fast ,easy and safe.
Large surface area pleated design provide low pressure drop and long service life.
Polypropylene cartridges comply with FAD grade.
Flow rate up to 1900LPM per cartridge.

Application:

Industrial	Municipal water, RO Prefiltration, reclaimed water, coolant, nozzle protection, belier condensate, desalination
Chemical	Quench water, aqueous salt solutions, final products
Petrochemicals	Water flooding ,produced water, enhanced oil recovery ,completion fluids, amine sweetening ,final products.
Electronics	RO Prefiltration, process water, demonized water prefiltration.
Food and Beverage	Process and blending water ,bottled water
Pharmaceutical	Process water
Power Plant	Supplementary water, condensation water, coolant.

Specification

Material and Construction:

FilterMedium	Polypropylene,Cellulose,MeltBlownpp
Support	Polypropylene
EndCaps	GlassFiberReinforcedPolypropylene
OringSealoptions	EPDM,NBR,Viton.

Max. Operating Differential Pressure:

Polypropylene	3.44bar@82 Degree,50psi@180°F
GlassFiber	3.44bar@82 Degree,50psi@180°F
SuggestionFlow	20’’660lpm 40’’1300LPM 60’’1900LPM

Order Information:

PH	PP	0400	40	G	E
	Material	Micron	LengtK(inch)	Supporting	Seal
	pp	0010=1	20=20	B=outerbelt	B=NBR
	GF	0050=5	40=40	G=outercage	E=EPDM
		0100=10			V=Viton
		0150=15
		0200=20
		0400=40
		0700=70
		1000=100
