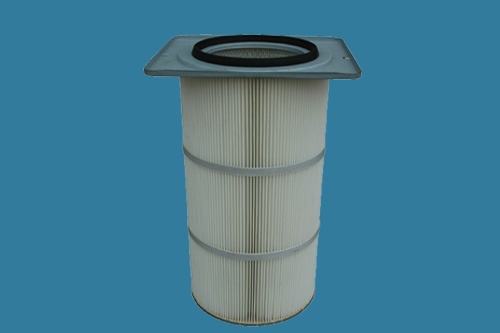

Non-woven cloth air filter

This filter to kapok fiber or polyester fiber filter material, to fold into corrugated shape, and within the frame.

inner and outer tube material : galvanized sheet
Top and bottom caps material: aluminum , iron, rubber
Filter medium material: glassfibre , PP non-woven , filter paper, kapok fiber or polyester fiber

Use cope: It is widely used in blast furnace, thus standing raw blower air machine, various raw materials of gas turbine, takes a long time to run the diesel engine, air dust-contained two higher requirements of central air conditioning system, central control and other large unit inlet filtration powder coating system powder recovery system.

Non-woven cloth air filter

TAG: Non-woven cloth air filter

Specification

Name	Model	Capacity(m3/h)	Pressure (Pa)	Working temperature(°C)	Filtration efficiency(%)	Size (mm)
Name	Model	Capacity(m3/h)	Pressure (Pa)	Working temperature(°C)	Filtration efficiency(%)	D	D1	L
air filter element	KLX-850	850	120-175	Bombax cotton 105 Polyester fiber 135	Bombax cotton 99 Polyester fiber 99.99(more than 2um)	320	212	560
	KLX-900	900				320	212	610
	KLX-1000	1000				320	212	660
	KLX-1050	1050				320	212	700
	KLX-1100	1100				350	240	600
	KLX-1150	1150				350	240	650
	KLX-1200	1200				350	240	710
	KLX-1800	1800				400	291	315
