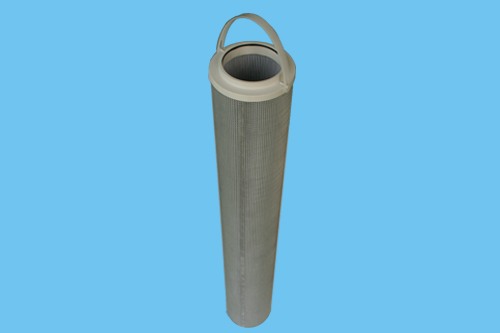

High tech replace HC9600F series hydraulic oil filter

Application:

In hydraulic system, it is used to filter solid particles and colloidal substances in the working medium, and control the actuating medium pollution effectively. This series of filter is the localization of imported equipment of the substitute products, it can replace PALL filter.

Model code:

Cartridge model: HC9601FKP 13H

HY-FILTER cartridge model: T9601   H    003   BN  /  Z

                                                          (1)    (2)   (3)    (4)    (5)

Introduction:

(1)model number: HC9600F

(2)pressure: H-32MPa  M-16MPa  C-3.0MPa  L-1.6MPa

(3)precision: 1-3um  3-5 um  5-12 um  20-25 um……

(4)material: hot-melt(BN), stainless steel woven mesh(W), cellulose media(P), stainless steel sintered mesh(V).

(5) Sealing material: fluorine aprons(Z), nitrile-butadiene rubber(D).
