PP melt blown filter element uses polypropylene (PP) thermal...
KLX series Air Filter applicable to air separation, purification of dust, In order to ensure cleanliness requirements system, extending use life.
-- This efficiency air filter to PP, Fiberglass, kapok fiber or polyester fiber filter material, to fold into corrugated shape, and within the time frame.
-- With high efficiency, low resistance, good permeability. High reliability, long life and other characteristics.
-- Polyester fiber materials have more resistance, corrosion resistance, water, not easy clean, can use repeatedly pulse.
-- Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
-- Filter material surface do waterproof and oil processing.
-- Filter material surface do waterproof and oil processing.
-- Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.
-- Excellent chemical resistance.
-- Professional sealing obturator elastic neoprene
-- Good filter material stiffness,can be repeated washed.
-- Greatly increase the effective filtration area.
-- Especially suitable for large dust concentration industry.

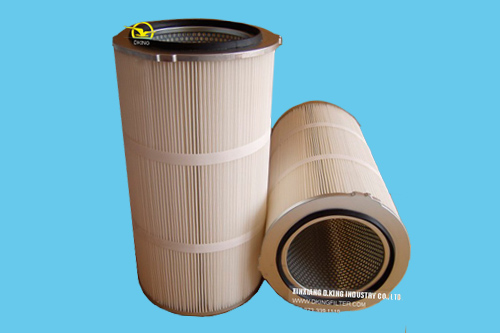

-- Structure: Cylindrical Filter Element
-- Choose Filter Media: PP / Fiberglass / Nanofiber / Synthetic /H&V Filter paper etc.
-- Choose Top / Bottom Cap: Galvanized steel / Stainless steel / Powder coated / ABS etc.
-- Choose Gasket: EVA / Silicone etc.
-- Choose Inner / Outer Mesh: Galvanized steel with hotmelt glue / Stainless Steel, Color-coated steel etc.
-- Choose Bottom: Open/Closed with bolt hole.
-- Finishing Treatment: Teflon-coating, waterproofing, oilproofing, flame-retarding treatment, antistatic coating, etc.
Name |
Model |
Capacity (m3/h) |
Pressure (Pa) |
Size (mm) |
||
D |
D1 |
L |
||||
Air Filter Cartridge |
KLX-850 |
850 |
120-175 |
320 |
212 |
560 |
KLX-900 |
900 |
320 |
212 |
610 |
||
KLX-1000 |
1000 |
320 |
212 |
660 |
||
KLX-1050 |
1050 |
320 |
212 |
700 |
||
KLX-1100 |
1100 |
350 |
240 |
600 |
||
KLX-1150 |
1150 |
350 |
240 |
650 |
||
KLX-1200 |
1200 |
350 |
240 |
710 |
||
KLX-1800 |
1800 |
400 |
291 |
315 |
