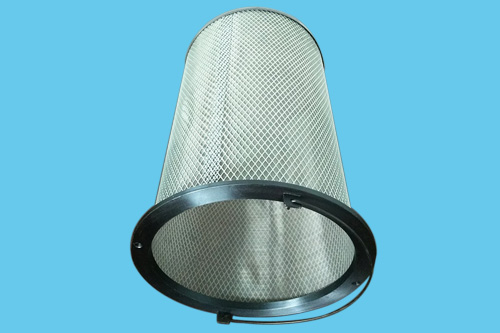

Feature: Basket filter is belong to pipeline coarse filter series

Material: carbon steel , stainless steel

Installation site: Normally installed in pressure reducing valve, pressure relief valve, the valve for water or other equipment inlet end

Application: Used to clean up the impurity in the media, in order to protect the valve and the equipment normally use

Technical parameters

1. Housing material : carbon steel , stainless steel
2. Nominal diameter : DN25-DN400 mm
3. Filter screen material : stainless steel
4. Sealing material : NBR , pllytef (according to working medium )
5. Working temperature : no more than 90 centigrade
6. Connection type : flange
7. Normal pressure : 1.6MPa
8. Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

​
