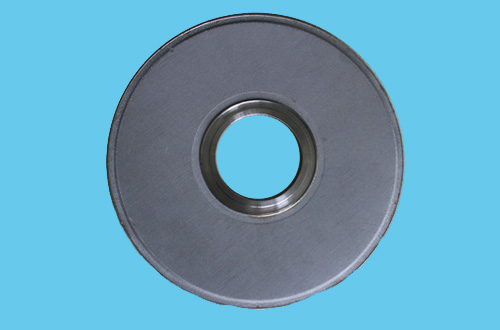

China Factory Supply Stainless Steel Filter Wire Mesh Disc

Material: Stainless steel, wire mesh, fuel filter glass, fiber paper etc.

Structure: Edge, material is aluminum , stainless steel

Filter medium , material is stainless steel mesh and Cu mesh

Structure and material
Part name	material
Edge	Aluminum , stainless steel
Filter medium	Stainless steel mesh and Cu mesh

Application: Disc filter is mainly used to metallurgy , chemical industry , machinofacture , papermaking , spinning , food medicine , livelihood , environmental protection etc. which involved oil , water filter industry

Raw oil , fuel oil , diesel oil , kerosene , gasoline ,etc . filtering

Lubricating oil , hydraulic oil ,machine oil , gear oil etc. filtering

Raw water , sewage , plain water , reclaimed etc. clear filtering.

Use scope	Disc filter is mainly used to metallurgy , chemical industry , machinofacture , papermaking , spinning , food medicine , livelihood , environmental protection etc. which involved oil , water filter industry
	Raw oil , fuel oil , diesel oil , kerosene , gasoline ,etc . filtering
	Lubricating oil , hydraulic oil ,machine oil , gear oil etc. filtering
	Raw water , sewage , plain water , reclaimed etc. clear filtering.

Feature:

1. High strength, long use life, strong resistance to corrosion, big use temperature range, no material breaks away off

2. Big filter area, big flow, high porosity, fine permeability, strong ability of accept dirt, can clean and back wash

3. Easy install, dismantle, clean, use economy

Feature
Using life	Long , can be clean and use again
Temperature	Big range
Accept dirt	Strong ability
Area and flow	Big
Advantages	Easy install , use economy

Stainless Steel Filter Wire Mesh Disc

TAG: Stainless Steel Filter Wire Mesh Disc

Specification

Model		DN(mm)		Filter precision(um)	Nominal pressure(MPa)	Filter disc size(mm)		Filter disc number
Model		DN(mm)		Filter precision(um)	Nominal pressure(MPa)	Inner	Outer	Filter disc number
SPL-15	15	80 100 180	0.8	20	40	2-30
SPL-25	25			30	65	2-20
SPL-32	32			30	65	2-30
SPL-40	40			40	95	2-34
SPL-50	50			60	125	2-22
SPL-65	65			60	125	2-34
SPL-80	80			70	155	2-40
SPL-100	100			70	155	4-40
SPL-125	125			90	175	4-40
SPL-150	150			90	175	6-40
SPL-200	200			90	175	8-40
