PP melt blown filter element uses polypropylene (PP) thermal...
Household water filter Electronic Industry Spa and Pool water filtering Restaurant Food Beverage Filtration Industrial waste water treatment Pre filtration for sea water desalinization

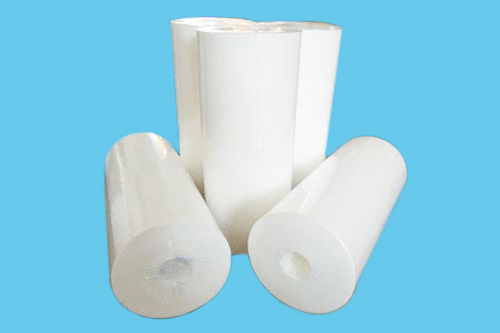

Big Blue PP Melt Blown Filters are constructed with multilayers depth cartridges. The Big Blue PP filter, with its several fold times greater dirtholding capacity and life, will reduce changeout frequency, out value than the slim one in applications where high capacity and infrequent replacement are requested.
Features:
Great chemical resistance
High dirtholding capacity
Large surface area has high flow rates
Accurate final filter effect in consistent high performance filtration
Multilayers graded density of the extended media captures particles throughout the filtering process
Household water filter |
Electronic Industry |
Spa and Pool water filtering |
Restaurant Food & Beverage Filtration |
Industrial waste water treatment |
Pre filtration for sea water desalinization |
Filter Media | Polypropylene |
Length | 10",20",30",40" |
Micron Rating | 1, 5, 10, 20,30, 50, 75, 100 μm |
Inside Diameter | 1.1"(28mm), 1.2"(30mm) |
Outside Diameter | 4.33“(110 mm),4.5"(114mm) |
Operation Date:
Max. operating temperature | 60 Degree(140) |
Max. Differential Pressure | 3 bar at 27 Degree (43 psi at 80) |
Recommended Change Out Differential Pressure | 1 bar (14.5 psi) |
Order Information:
HTBBPP | ID | OD | Rating | Length |
Big Blue PP Filter | A:1.1"(28mm) | C:4.33"(110 mm) | 01:1μm | 10:10" |
B:1.2"(30mm) | D:4.5"(114mm) | 05:5μm | 20:20" | |
010:10μm | 30:30" | |||
020:20μm | 40:40" | |||
030:30μm | ||||
050:50μm | ||||
Other Customized Sizes | 075:75μm | |||
100:100μm |
